- High Speed: The speed of this motor can reach 500rpm and a no-load speed of 29.82mile/h, which can make your ride easier. So, you can fully enjoy the ride.
- Smooth Running: The friction of this front wheel motor is greatly reduced when running because it has no brush and gear so it can run more smoothly even on irregular roads.
- Low Maintenance Cost: This front wheel motor has a low maintenance cost because it has no brush, so you don't have to replace the brushes to reduce your economic pressure.
- Powerful Controller: This product is equipped with a powerful controller to ensure a high current supply. It can help you ride, double the distance, and make the riding process easier!
- High Efficiency: This brushless and gearless motor is more efficient due to its high power of 1000W and an available efficiency of more than 82%, thus allowing for more efficient riding.
Description

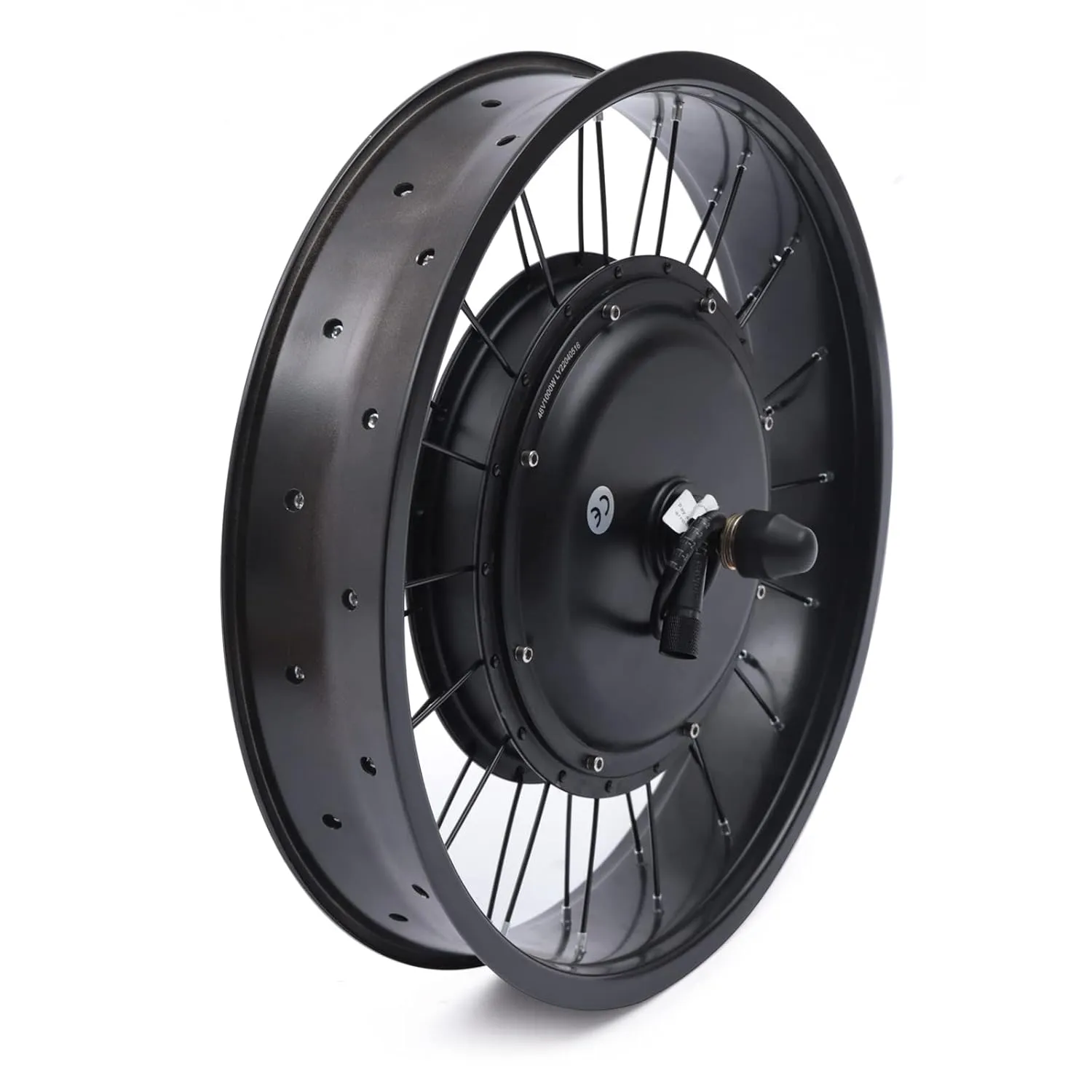

This brushless gearless hub motor is made of aluminum and iron, which is more durable and corrosive-resistant, having a long service life. The speed range can reach 500rpm and has a no-load speed of 48km/h, which can make your ride easier. So, you can fully enjoy the ride. It is used to convert an ordinary bicycle into an electric bicycle, making it both a bicycle and an electric bicycle. It will be your ideal choice!
Application
It is suitable for the modification of 20 "x4" size wheels, such as snow bikes, electric bikes, and electric motorbikes.
Specification
Material: Aluminium Iron Magnetic Steel
Color: Black
Voltage: 48V
Power: 1000w
Rated Speed: 500 rpm
Rated Torque: 45 N.M
Motor Type: Brushless Gearless Motor
Brake: 6 Screws Fixed Model Disc Brake
Corresponding Controller: 48v1000w Controller
Efficiency: ≥82%
Travel Speed: 48km/h Unladen(29.82mile/h)
Suspension Type: Front
Motor Diameter: 420mm/16.54in
Motor Shaft Length: 200mm/7.87in
Motor Cable Length: 100cm/39.3in
Wheel Diameter: 445mm/17.25in
Motor Width: 82mm/3.263in
Number of Hall Sensors: 3
Body Size of Magnet: 13.65*3*30mm/0.53*0.11*1.18in
Flat Fork Width Requirement: Min.135mm/Min.5.31in
Suitable Wheel Size: 50*10cm/20*4in
Packing Size: 50*50*28cm/19.68*19.68*11.02in
Gross Weight: 11.5kg/25.35lbs
Net Weight: 10kg/22lbs
Package Included
1* Wheel Motor
1* Controller
1* Turnbuckle
2* Brake Handles
2* Handles
1* Assist Sensor
1* Controller Bag
1* English Manual
All Accessories for Installation
Notes
1. It is suitable for two-wheeled bicycles, not for three-wheeled or multi-wheeled vehicles.
2. Please make sure to u
- Date First Available : October 27, 2022
- Manufacturer : Rowya
